Betoplan Top MF

PanelsFormwork panels & construction site layout

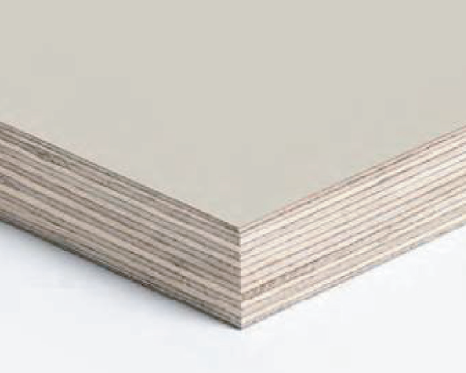

Betoplan Top MF

Betoplan Top MF is perfectly suited for all smooth, joint-free concrete surfaces with higher requirements as per DIN 18202/3, line 7 (SB4).

Delivery subject to stock availability.
Free pick up in our warehouse at Zottegem.
Shipping within Europe possible.

Available dimensions and thickness
- 21 x 5200 x 2000 mm
- (Other dimensions available upon request)
Applications
This panel is ideal for producing incredibly uniform matte concrete surfaces on construction sites and in precast concrete factories. It can withstand both longitudinal and transverse loads.
Technical specifications
- Oversized formwork panel in plywood veneered to DIN 68792 standard
- Coated with high-quality melamine resin film (MF) 550 g/m² on each side.
- Edges sealed for durability.
- To achieve SB 3/4, a concrete pouring test is required.
- Alkaline-resistant surface.
- Significantly reduced water permeability.
- Enhanced light resistance.
- Discoloration caused by potential interactions with phenolic resin coatings is eliminated.
- Longer lifespan compared to conventional phenolic resin-based coatings.
