Uncoated Plywood

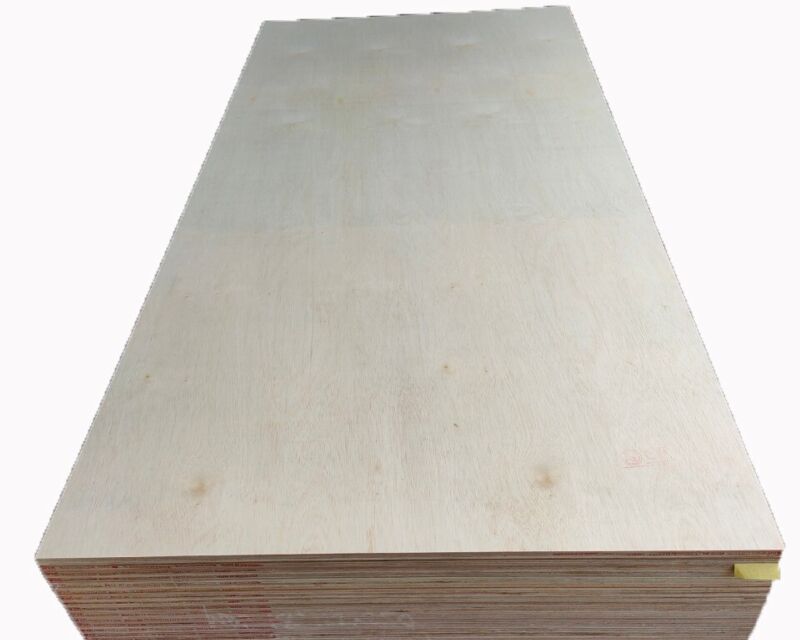

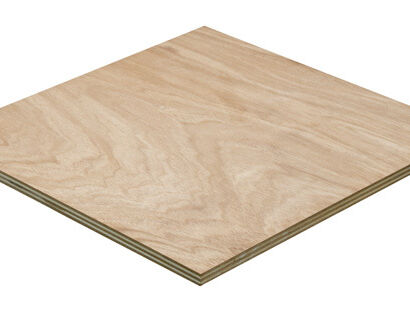

Meranti plywood

Meranti plywood for joinery, interior fit-out and light construction

Meranti plywood is a panel made from tropical hardwood (Shorea spp.), valued for its stability, versatility and reliable performance in general construction. It is an uncoated panel, without surface film, intended for interior use and protected exterior applications depending on the bonding quality.

Its structure of regular veneers provides good mechanical strength and consistent workability for both technical and decorative applications.

Delivery subject to stock availability.
Free pick up in our warehouse at Zottegem.
Shipping within Europe possible.

Available dimensions and thickness
- Available formats: 2500 × 1220 mm
- Thicknesses: 5 / 9 / 12 / 15 / 18 / 22 mm
Qualities
- Species: Meranti (tropical hardwood)

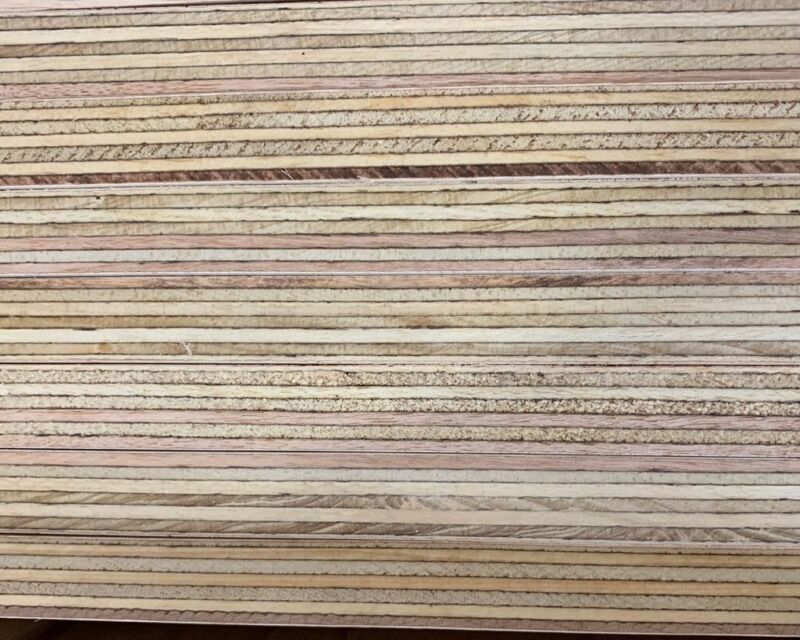

- Appearance: characteristic reddish-brown colour, homogeneous veneers (straight to slightly interlocked grain)
- Faces: variable grades depending on thickness and class
- Uncoated panel without surface treatment, suitable for further processing and finishing
Applications
- Stable and homogeneous tropical species with good mechanical performance
- Regular veneer structure providing suitable stability for general applications
- Versatile uncoated panel for joinery, interior fit-out and light construction
- Easy to process thanks to consistent workability
- Suitable for interior construction, cladding, partitions, ceilings, packaging and light to semi-structural applications
Technical specifications
- Bonding quality: EN 314-2 / Class 3 (WBP – exterior phenolic bonding)
- Density: 600–650 kg/m³ (density tolerance ±10%)
- Dimensional tolerances: according to EN 315; moisture content approx. 10%
- Physical properties:
  - Thermal conductivity: 0.13 W/mK
  - Specific heat capacity: 0.99 kJ/kgK
  - Water vapour diffusion resistance (μ): 0.83
  - Workability: good
- Fire class: D-s2, d0
- Formaldehyde emission: EN 717-2 / E1
- 2022_DOP_VSB042_Indo_Meranti_WBP_EN_2022-11-28-103635_kpys.pdf
