Gutex® Wood Fibre Insulation

Gutex® wood fibre insulation is a fully natural product, free from harmful or chemical additives. Thanks to the unique properties of wood fibre boards, this insulation not only provides excellent protection against cold in winter but also keeps heat out during warm summer days. In addition, the boards deliver outstanding acoustic performance and ensure healthy moisture regulation within the building envelope. This makes Gutex® wood fibre insulation particularly suitable for timber frame construction.

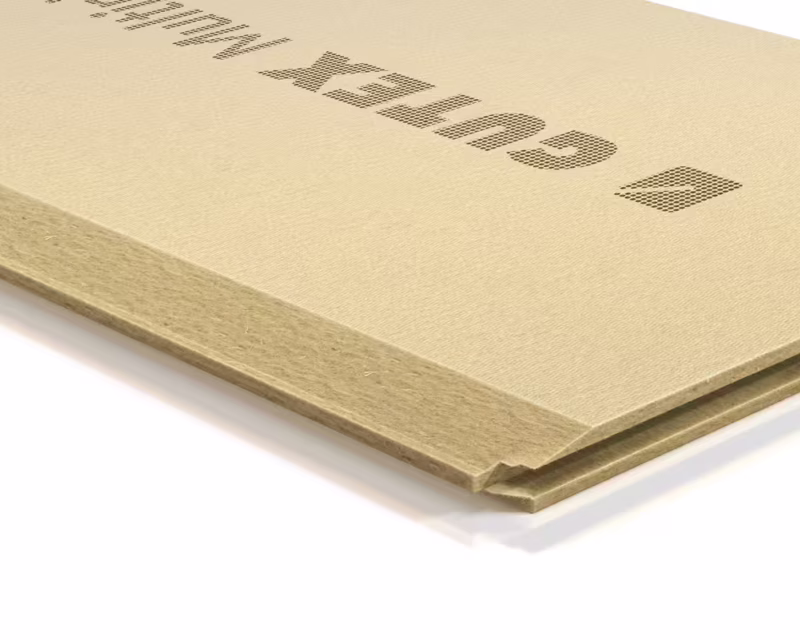

Gutex® Multiplex-top Undersheet

Rain-resistant, windproof and robust

Gutex® Multiplex-top enables rainproof wood fibre insulation with minimal build‑up height. This undersheet is suitable for new-build roof constructions, roof renovations from the inside or the outside, installation above the roof insulation layer, and as a protective layer behind ventilated façade systems.

The board’s high vapour permeability and pronounced moisture absorption-and-release capacity ensure long-term hygrothermal safety. Its windproof tongue‑and‑groove connection provides reliable protection against unwanted air infiltration.

Key performance features:

• Proven rain resistance with tolerance for up to 3 mm joint formation
• High hail protection, class HW4 (TÜV tested)
• Can remain exposed to weather conditions for up to 12 weeks as a temporary roof

Product dimensions:

• Size: 2500 × 750 mm
• Thicknesses: 22 – 35 mm
• Thermal conductivity (λ): 0.045 W/mK

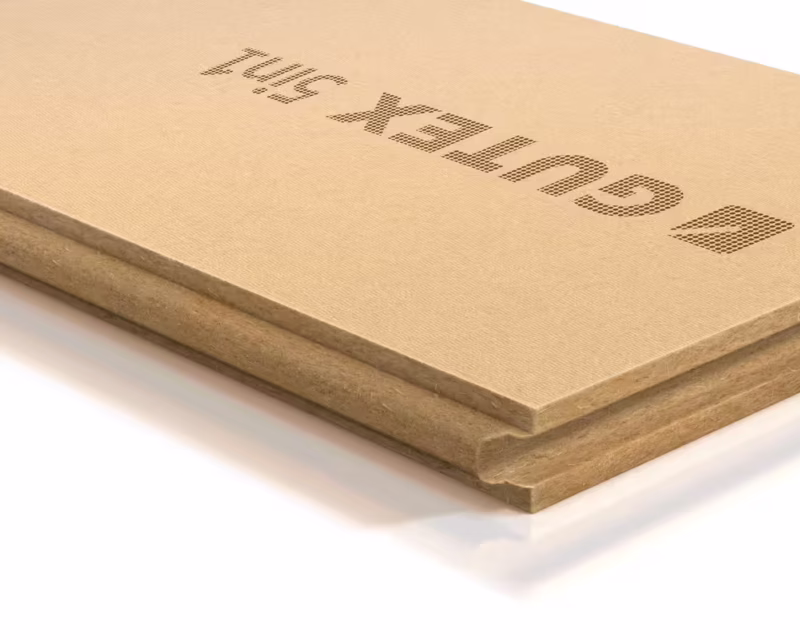

Gutex® Thermowall 5 in 1

Universal, renderable wood fibre insulation board

Thermowall 5 in 1 covers no fewer than five application areas with a single product — from façade insulation to underlayment and interior wall insulation. It offers:

• Renderable insulation board approved for ETICS systems
• Exterior sheathing for timber constructions, ideal for ventilated façades
• Rain-resistant undersheet (UDP-A)
• Directly renderable interior wall insulation
• Full-surface insulation layer for installation cavities and services zones

Product dimensions & thicknesses

• 1900 × 600 mm: 40 / 60 / 80 / 100 / 120 / 140 / 160 / 180 mm
• 2550 × 600 mm: 60 / 80 / 100 mm
• 3000 × 1250 mm: 60 mm
• Thermal conductivity (λ): 0.040 W/mK

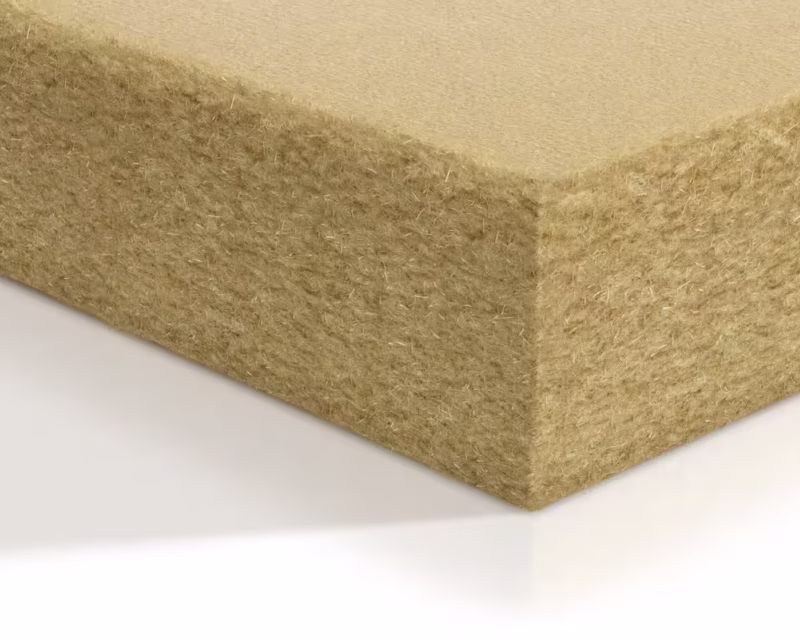

Gutex® Thermoflex

Flexible wood fibre insulation batts for between‑rafter and between‑stud applications

Gutex® Thermoflex impresses with its unique fibre structure, offering exceptional stability and high spring‑back performance. The batts fit snugly into cavities, delivering strong thermal performance and long‑lasting insulation throughout the building’s lifetime.

Key advantages:

• High spring‑back and dimensional stability for long‑term effective insulation
• Low‑dust insulation batts promote clean, comfortable working conditions
• Fast, precise cutting saves time and reduces waste

Product dimensions:

• Size: 1350 × 575 mm
• Thicknesses: 30 / 40 / 50 / 60 / 80 / 100 / 120 / 140 / 160 / 180 / 200 / 220 / 240 mm
• Thermal conductivity (λ): 0.036 W/mK
